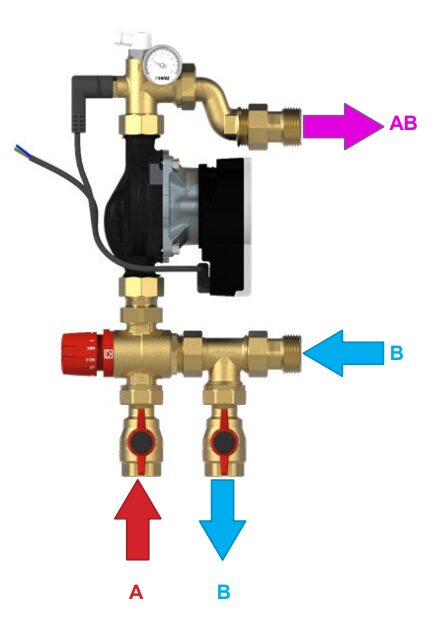

HERZ Warm floor mixing unit THERMO with pump 3F53241

Warm floor mixing unit THERMO with adjustable speed pump WILO PARA. High efficiency pump suitable for 3-12 heating circuits, mixing valve with setting 20 - 42 °C to regulate flow temperature in underfloor heating circuits. The set includes a thermometer for indicating the inlet temperature and a safety temperature switch and an air breather with a hose. Suitable for underfloor collectors with a spacing of 167 - 233 mm (center to center) using eccentric connection fittings. Includes 2 connection fittings G1" external thread for distributor with free-turning nut, high temperature circuit connection and disconnection with 3⁄4" ball valves.

~ Nominal pressure: 6 bar (static) / 5 bar (dynamic)

~ Max. working temperature: 90 °C

~ Min. working temperature: 2 °C

~ Bimetallic thermostat switch: fixed cut-off temperature 60 °C

The underfloor collector, collector cabinets and separate room control accessories must be ordered separately.

Warranty: 2 years

Country of manufacture: Austria
